X703 3-axis Encoder Module

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

3 Axis Encoder/Counter Expansion Board for use with I-7188 Embedded/PLC Controllers

THÔNG TIN SẢN PHẨM

X703 3-axis Encoder Module

Features

This 3 Axis Encoder/Counter expansion board is used to drive motors or to get encoder data. For use with I-7188 embedded/PLC controllers (7188XB, 7188EX, 7188XG, 7188EG). The X-703 is capable of 3 axis motion control, using a 24-bit encoder counterwith 1MHz maximum counting rate!

Specifications

3-axis encoder counter
24-bit encoder counter
Encoder mode: Quadrant, CW/CC, Pulse/Direction
Maximum counting rate:1MHz

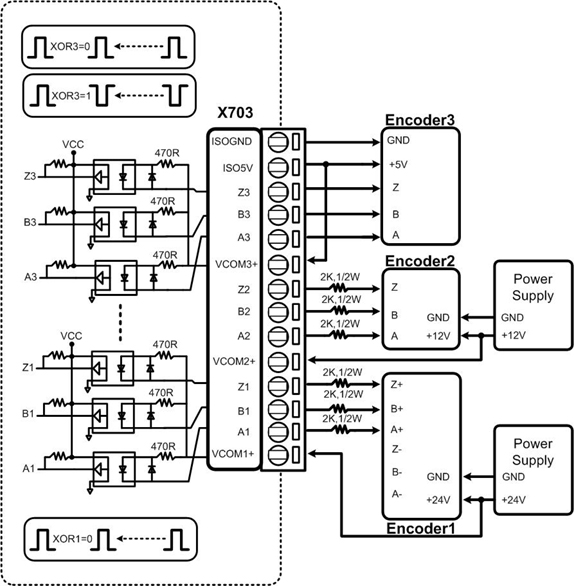

Input Level:
- Input 5V
  Logic High: 3.5V ~ 5V
  Logic Low : 0V ~ 2V
- Input 12V with external resistor 1K ohm
  Logic High: 5V ~ 12V
  Logic Low : 0V ~ 2V
- Input 24V with external resistor 2K ohm
  Logic High: 7V ~ 24V
  Logic Low : 0V ~ 2V
Built-in XOR logic for active high or low
Isolated voltage output: +5V, 100 mA(max)
