Module 4 kênh đầu vào tương tự Cimon CM3-SP04EAO

Thương hiệu: CIMON | Tình trạng: Còn hàng

Liên hệ

Module 4 kênh đầu vào tương tự Cimon CM3-SP04EAO

Analog I/O

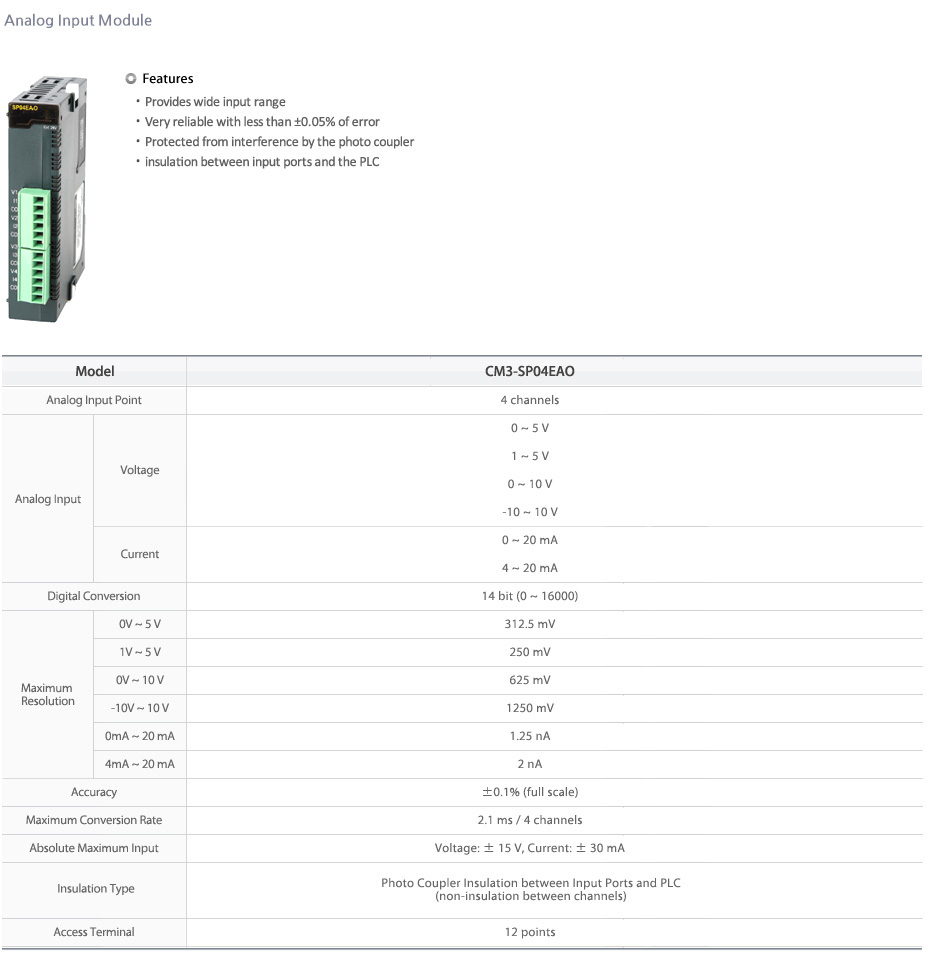

CM3-SP04EAO is 4CH voltage/current input A/D module.
CM3-SP04EOAV is 4CH voltage (-10~10V, 0~10V) output D/A module.
CM3-SP04EOAI is 4CH current (4~20mA) output D/A module.
CM3-SP04EAA is 2CH voltage/current input, 2CH voltage/current output A/D D/A module.
DA conversion module converts digital value, 16bit binary data (data: 14bit) from PLC CPU, into analog signal (voltage or current output). It converts digital value 0~16000 (-8000~8000) / 0~64000(-32000~32000) to analog value 0~20mA, 4~20mA, -10~10V, 0~5V, 0V~10V, 1~5V.
AD conversion module converts input Max. and Min value into 0~16000(-8000~8000). If input value gets out of the range, it converts into -192~16191(8192~8191). If value gets out of this, -192~16191(-8192~8191) is fixed.
Through “Hold Clear” function, DA module can output offset value (4mA, -10V) when RUN mode changes to STOP mode or maintain output value being with RUN mode.
Channel that converting is prohibited will output the minimum value of each output mode. (0mA, 4mA, -10V, 0V, 1V)
Normal status: LED On, Error status: LED blinking by 0.5sec interval.
