16 Port FRNet Isolated Digital Input Distributed I/O Module (FR-2053T has screw terminal connector)

THÔNG TIN SẢN PHẨM

FR-2053 16-channel isolated digital input with 20-pin header

Features

FR-2053 provides a 16 channel isolated photo-coupler digital input in the FRnet. I/O data transmission is controlled by the FRnet control chip (developed by ICPDAS). It was designed to provide deterministic high speed network communication. Anti-noise circuitry has been built into the FRnet control chip to ensure communication reliability.

FRnet is an innovative industrial field bus offering high-speed deterministic I/O control, real I/O synchronization capabilities, non-protocol communication, and easy programming. The ICP DAS FRnet line of products offers bleeding edge technology for high speed data acquisition applications! FR-2053 is an Isolated Digital Output Distributed I/O Module with 16 ports.

High transmission reliability
Simple synchronization mechanism
DIN-Rail mountable
No software overhead on protocol
Isochronous DI/DO processing
Supporting broadcasting (1:n data transmission)

Specifications

Digital Input
Input Channel	16
Input Type	Sink (NPN)
On Voltage Level	+20~24VDC
Off Voltage Level	+3VDC max
Input Impedance	4.7 kOhm
Turn-on delay time	less than 1.0ms
Turn-off delay time	less than 1.0ms
Isolation Voltage	1500Vrms
Interface
2-wire cabling	2-wire cabling Belden 9841 (2P twisted-pair cable), When different cables are used, the transmission distance may change
Transfer distance	Max. 400m
LED Indicators	Power, Communication Run, Communication Error, Terminal resistor, Digital output
Transfer speed	250 kbps
Cyclic scan time	2.88ms
Connection	20-pin header for FR-2053
Connection	Removable 20-pin Terminal Block for FR-2053T
Power
Input Voltage Range	+10 ~ +24 VDC (Non-isolation)
Power consumption	2 W Max.
Protection	Power reverse polarity protection
Frame Ground for EMS Protection	Yes
Connection	5-Pin Removable Terminal Block
Mechanical
Casing	Plastic (Flammability UL 94V-0)

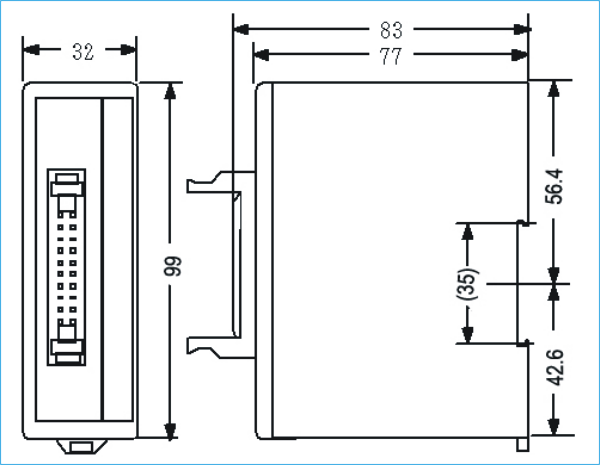

Dimensions (W x L x H)	33 mm x 102 mm x 110 mm
Installation	DIN-Rail
Operating Temperature	-25°C ~ +75°C
Storage Temperature	-30°C ~ +85°C
Ambient Relative Humidity	10% ~ 90% RH, non-condensing
