Bộ chuyển đổi CAN sang Quang (Dual Fiber, Multi Mode, ST, 1.4KM) ICP DAS I-2532 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

CAN to Multi-mode Fiber Bridge

Gọi +84 904251826 để được trợ giúp

Bộ chuyển đổi CAN sang Quang (Dual Fiber, Multi Mode, ST, 1.4KM) ICP DAS I-2532 CR

I-2532 CR đã dừng, thay thế và nâng cấp thành I-2533 CR


  • Compatible with CAN specification 2.0A and 2.0B
  • Fully compatible with the ISO 11898-2 standard
  • Support a range of baud rates from 10kbps ~ 500Kbps
  • Jumper for 120Ω terminal resistor of the CAN bus
  • Fiber Port: ST (Multi-mode)
  • Fiber Cable: 50/125 μm , 62.5/125 μm, 100/140μm
  • Wave Length: 850 nm
  • Auto-baud detection
  • up to 100 nodes on CAN port
  • Removable terminal block
  • Mount easily on DIN-rail
  • 3 kv galvanic isolaton
  • One CAN and one fiber channel

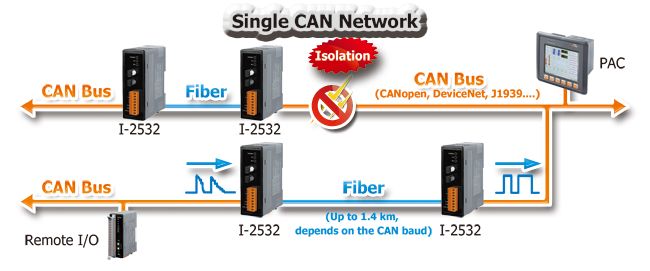

Fiber optic transmission medium is a good material to protect data transmission from EMI/RFI interference and has been used in harsh environment extensively. On the other hand, CAN bus is famous in industrial application. In order to solve the problem between different transmission medium, I-2532 is specially designed for converting the electrical CAN bus signal to fiber optic cables. The fiber length between two I-2532s can be up to 1.4km (4593ft), it is mainly decided by the cable attenuation of fiber and the CAN bus baud. I-2532 is the economic solution for applications which require protecting the data transmission from electrical exposure, surges, lightning or chemical corrosion.


  • Control System
  • Building Automation
  • Factory Automation
  • Distributed data acquisition
  • EV(Electric Vehicle) charging station


LED Indicators
Status 1 x Power
2 x CAN status
Ports Multi Mode; ST connector x 1
Fiber Cable 50/125, 62.5/125 or 100/140 μm (62.5/125μm is recommended)
Wavelength 850 nm
Propagation Delay 125ns max (125ns delay shortens bus line length by ~ 25 m)
Distance Between Stations 1.4 km max (62.5 / 125 μm recommended)
Ports 1
Baud Rate 10 k ~ 500 k bps
Terminal Resistor Switch for 120Ω terminal resistor
Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Input Range +10 VDC ~ +30 VDC
Consumption 0.5 W
Casing Plastic
Dimensions (mm) 32.3 x 77.5 x 99.0 (W x L x H)
Installation DIN-Rail
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Specification Memo

The propagation delay depends on the CAN Bus baud rate and the CAN message format. This value has been tested using a CAN baud rate of 1 Mbps, the CAN ID 0x12345678 and 8 bytes of data with a value of 0xFF.




Ordering Information

I-2532     CR  CAN to Multi-mode Fiber Converter; 1 (1.4 km) multi-mode, ST connector (RoHS
