Bộ chuyển đổi RS-232/485/Ethernet sang WI-FI ICP DAS M2M-711D CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

Remote Maintenance Ethernet Device Terminal Unit with Wi-Fi, RS-232 and RS-485 Ports (RoHS)(Asia Only)

Gọi +84 904251826 để được trợ giúp

Bộ chuyển đổi RS-232/485/Ethernet sang WI-FI ICP DAS M2M-711D CR

Tính năng

  • Support VxServer software.
  • Provide pair connection (RS-232,RS-485) on network.
  • Support Server and Client communication mode.
  • Be applied with other M2M products (M2M-420-A, M2M-720-A, M2M-710D…).
  • Support RS-232 or RS-485 serial communication ports
  • Built-in self-tuner ASIC chip for RS-485 port.
  • Web-based administration.
  • Built-in MiniOS7 OS to keep off the computer virus.
  • Ethernet Protocol: TCP, UDP, IP, ICMP, ARP, RARP.
  • Supports IEEE 802.11 b/g for Wi-Fi mode.
  • Supports WEP-64,WEP-128, WPA-TKIP and WPA2-AES encryption for AP mode.
  • Supports WEP-64,WEP-128 encryption for Ad Hoc mode.
  • Provide dynamic DNS function.
  • Supply static IP/DHCP (Ad Hoc mode don’t support DHCP).
  • Quick start.
  • 5-Digit 7 Segment LED Display.
  • EMI, RoHS compliance.

Giới thiệu

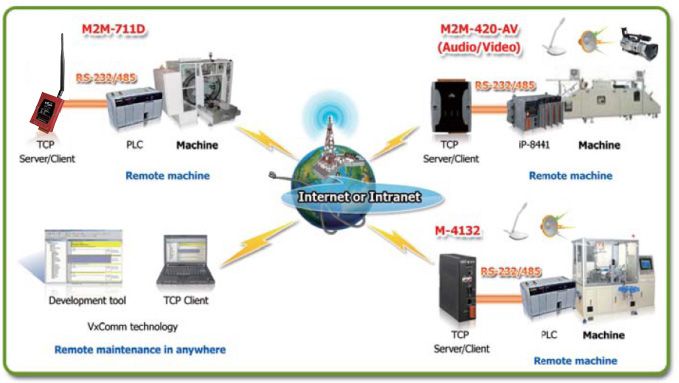

The M2M-711D module is specially designed for the remote maintenance and upgrading the serial to network application solution. It is suitable for the harsh industrial field. M2M-711D provides 2 major technologies on networking. 1. VxServer mode: The VxServer is a virtual com middleware software. The VxServer with VxComm Driver can create virtual COM ports in Windows and maps them to the serial ports of the M2M-711D devices through the Ethernet / Wi-Fi network. The user's RS-232 client programs need only to change to the virtual COM port to access the serial devices connected to the device servers through the network. 2. Pair-connection mode: It provides TCP data tunneling between 2 serial devices. Therefore, by means of TCP/IP server/client infrastructure, M2M-711D can provide the remote serial data transmission by Ethernet or Wi-Fi (IEEE 802.11b/g) between local and remote sides. This solution can transfer the site condition of equipment accurately. The maintenance engineer can directly check and diagnose the device/PLC like on-site. This can reduce the huge maintenance cost to increase the competition of enterprises. Except for the functionality above, M2M-711D can also be support the Pair-Connection of other equipment (M-4131, M2M-720-A, M2M-710D…).

Ứng dụng

1.Serial application revolution: Upgrade the original serial application to network application.

2.Remote Maintenance: Establish the remote maintenance system of the equipments sold in the world.


  • 3.Virtual Com: Remote maintenance by Virtual Com technology. (It's not supported in Wi-Fi mode).

Thông số kỹ thuật

CPU Module
CPU 80186, 80 MHz
EEPROM 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles.
Flash Flash ROM: 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles
Type 5-Digit 7 Segment LED Display
System LED Indicator
Wi-Fi LED Indicator
Antenna 2.4GHz - 2dBi Omni-Directional antenna
Channels 1~13; AP mode supports auto control channel
RX Sensitivity 87 dBm(IEEE 802.11b) / -72 dBm (IEEE 802.11g)
Transmit Power 12 dBm(IEEE 802.11b) / 14 dBm(IEEE 802.11g)
Transmission Distance (LoS) 100M
COM Ports
Ports 1 x RS-232
1 x RS-485
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Parity None, Even, Odd
Data Bit 7, 8
Stop Bit 2 (data bit must be 7 bit) or 1
Ports 10/100Base-TX Ethernet Controller
RJ-45 with LED indicator
Consumption 3.6 W for M2M-711D
Dimensions (mm) 72 x 123 x 33 (W x L x H)
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C



Thông tin mua hàng

M2M-711D     CR  Remote Maintenance Ethernet Device Terminal Unit with Wi-Fi, RS-232 and RS-485 Ports (RoHS)(Asia Only)
