Module Profinet 16 kênh đầu ra số cách ly ICP DAS PFN-2042 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PROFINET I/O Module (Isolated 16-ch DO) (RoHS)

THÔNG TIN SẢN PHẨM

Tính năng

• Protocol: PROFINET IO Device
• PROFINET Conformance Class B and RT Class 1
• Cyclic Time: 1ms (min)
• Generic GSDML File Provided (Version 2.25)
• Do load voltage: +3.5 ~ +50 VDC
• Do load current: 700 mA/Channel (max.)
• Provide short-circuit protection on DO channels
• 4 kV Contact ESD protection for any terminal

Giới thiệu

The PFN-2042 is specially designed for PROFINET IO device. It has 16-channel isolated digital outputs, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.

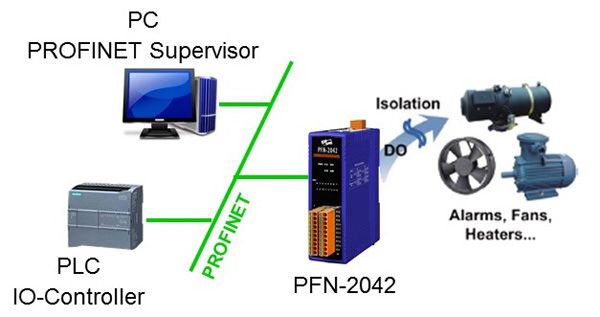

Ứng dụng

Industrial Automation
Factory Automation
Process Automation
Etc…

Thông số kỹ thuật

CPU Module
CPU	32-bit CPU Core
EEPROM	8 KB
Flash	4 MB
SRAM	32 MB
Watchdog Timer	CPU built-in

LED Indicators
Status	PWR LED, S1A LED, S1B LED, S2A LED, S2B LED

Digital Output
Channels	16, Sink, NMOS
Load Voltage	+3.5 ~ +50 VDC
Load Current	700 mA/Channel

Ethernet
Services	ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging

PROFINET
Conformance Classes	Class B
Services	RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time	1 ms (min)
Protocol	PROFINET IO Device

Power
Consumption	4 W

Mechanical
Dimensions (mm)	33 x 107 x 126 (W x L x H)
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 ℃
Storage Temperature	-30 ~ +80 ℃
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Thông tin mua hàng

PFN-2042 CR

PROFINET I/O Module (Isolated 16-ch DO) (RoHS)
