PFN-2051 CR: Module Profinet 16 kênh đầu vào số DI

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PFN-2051 CR PROFINET I/O Module (Isolated 16-ch DI) (RoHS)

THÔNG TIN SẢN PHẨM

Features

• Protocol: PROFINET IO Device
• PROFINET Conformance Class B and RT Class 1
• Cyclic Time: 1ms (min)
• Generic GSDML File Provided (Version 2.25)
• DI ON/OFF voltage level: +10 ~ +50 VDC / +4VDC max.
• 4 kV Contact ESD protection for any terminal
• Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +75°C)

Introduction

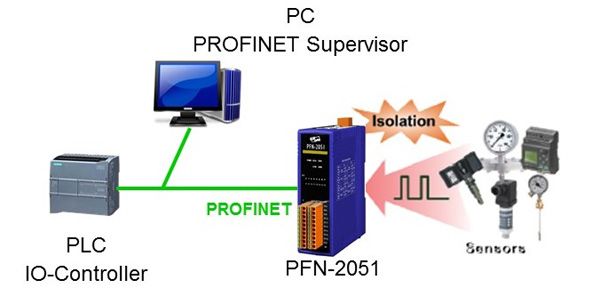

The PFN-2051 is specially designed for PROFINET IO device. It has 16-channel isolated digital inputs and, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.

Specifications

CPU Module
CPU	32-bit CPU Core
EEPROM	8 KB
Flash	4 MB
SRAM	32 MB
Watchdog Timer	CPU built-in

LED Indicators
Status	PWR LED, S1A LED, S1B LED, S2A LED, S2B LED

Digital Input
Channels	16, Dry Contact: Source, Wet Contact: Sink or Source
Wet Contact, ON Voltage Level	+10 VDC to +50 VDC
Wet Contact, OFF Voltage Level	+4 VDC max.
Dry Contact, ON Voltage Level	Close to GND
Dry Contact, OFF Voltage Level	Open

Ethernet
Service	ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging

PROFINET
Conformance Classes	Class B
Services	RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time	1 ms (min)
Protocol	PROFINET IO Device

Power
Consumption	3.5 W

Mechanical
Dimensions (mm)	33 x 107 x 126 (W x L x H)
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 ℃
Storage Temperature	-30 ~ +80 ℃
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

PFN-2051 CR

PROFINET I/O Module (Isolated 16-ch DI) (RoHS)
