PROFI-5060 CR: Module 8 kênh đầu vào số DI + 4 kênh đầu ra Relay giao tiếp PROFIBUS
Features
• Protocol & Hierarchy : DP-V0 Slave
• Supports Transmission Rate (kbps) : 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
• Transmission Rate Setting : detected automatically
• Address Setting : 0~99 set by rotary switches
• Indicators : PWR and RUN LEDs
• I/O modules Configuration : Configured by GSD file
• Network Isolation Protection : High Speed iCoupler
• DC Isolation Protection : 3000 VDC on PROFIBUS side
• 4KV ESD Protection : Contact for each terminal

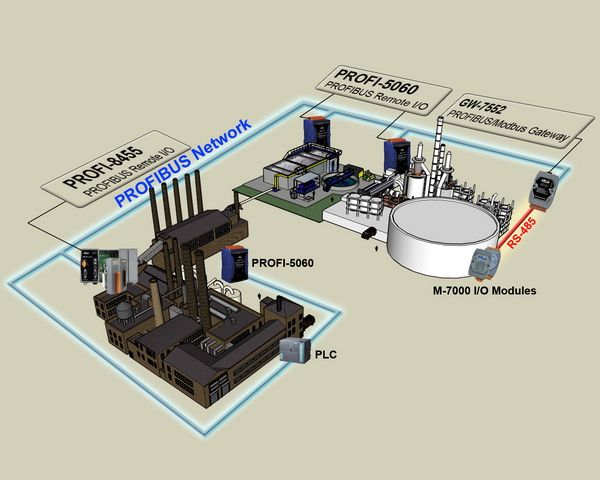

Introduction
The PROFI-5060 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 8-channel isolated digital input and 4-channel relay output. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.
Specifications
| LED Indicators |
| Status |
PWR LED, RUN LED |
| Digital Input |
| Channels |
8 Channels (Sink or Source), Isolated from each other
Off Voltage Level: +1V Max. On Voltage Level: +4 ~ +30V
Input Impedance: 3KΩ in series with opto-coupler
Isolation Voltage: 3750Vrms |
| Digital Output |
| Channels |
4 Channels (Form C )
Contact Rating: 0.6A@125VAC, 2A@30VDC
Operating Time: 3ms. Release Time: 2ms. (Typical)
Minimum Life: 500,000 Ops. |
| PROFIBUS |
| Controller |
Profichip VPCLS2 |
| Transceiver |
ADI ADM2486 |
| Baud Rate |
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol |
DP-V0 |
| Mechanical |
| Dimensions (mm) |
91 x 128 x 52 (W x L x H) |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 ~ +75℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Data sheet
Documents
Ordering information
| PROFI-5060 CR |
PROFIBUS Remote I/O Module (8-channel Isolated Digital Input and 4-channel Relay Output) (RoHS) |
