Module Wi-Fi Modbus TCP 8/16 kênh AI ICP DAS WF-2017 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

Wi-Fi I/O Module with 8-ch/16-ch AI (Asia Only)

Gọi +84 904251826 để được trợ giúp

Module Wi-Fi Modbus TCP 8/16 kênh AI ICP DAS WF-2017 CR

Tính năng

• 8-channel Differential Analog Input
• 16-channel Single-ended Analog Input
• Compatible with IEEE 802.11b/g standards
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• Wide Operating Temperature Range
• 4 kV ESD Protection
• Built-in Watchdog

Giới thiệu

The WF-2017 is a Wi-Fi interface and 8-channel Differential/16-channel Single-Ended analog input module. The analog input range is software selectable and supports +/-10V, +/-5V, +/-1V, +/-500 mV, +/-150 mV, and +/-20 mA. Differential and Single-ended mode is selected by jumpers. In addition, the WF-2017 has WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2017 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2017 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

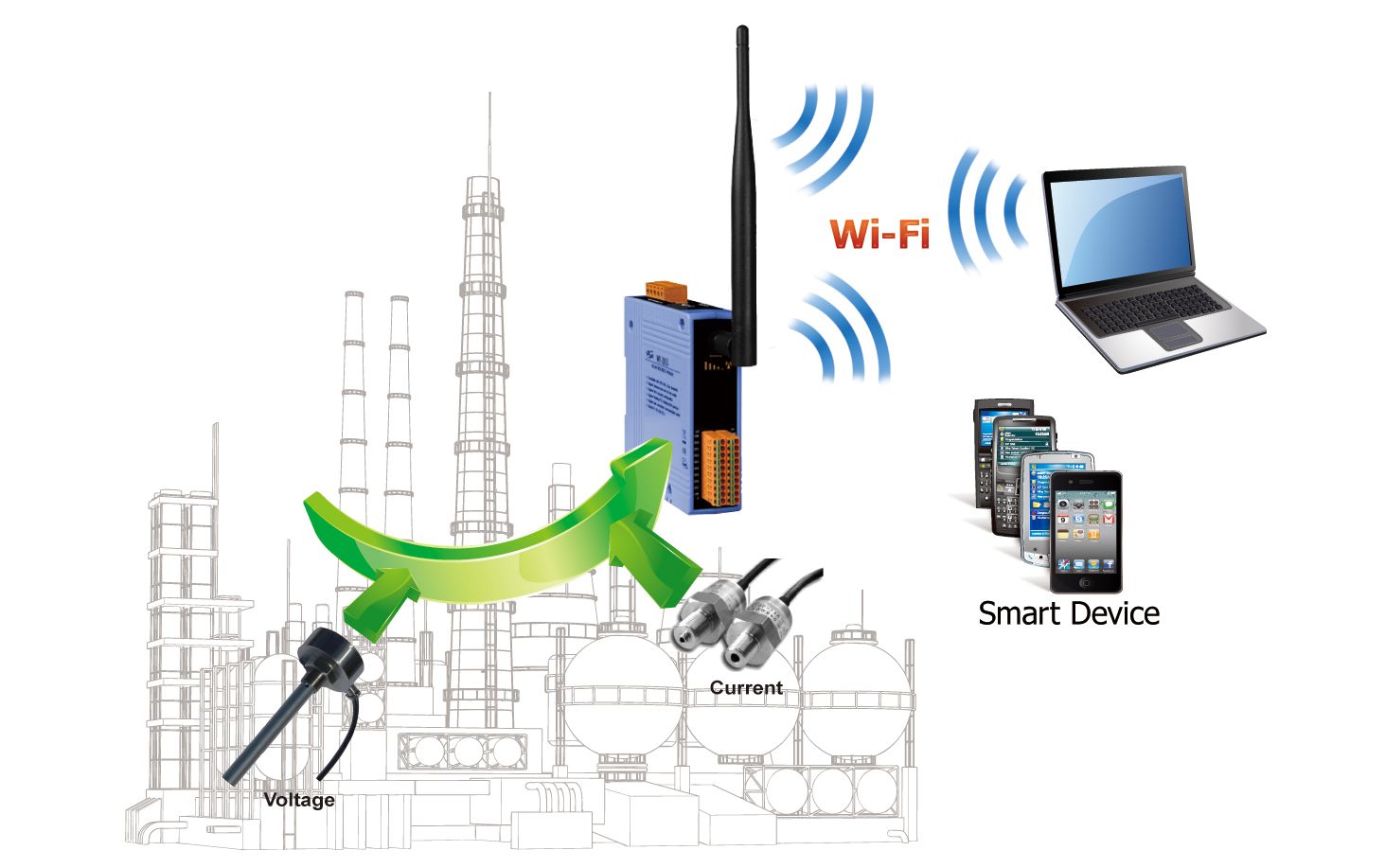

Ứng dụng



Thông số kỹ thuật

Intra-module Isolation Power: 3000 VDC
Transmission Distance (LoS) 50 meters (LOS)
Standard IEEE 802.11 b/g*
IEEE 802.11 b/g/n**
RX Sensitivity -83 dBm @ 11 Mbps*
-93 dBm @ 11 Mbps**
Output Power 8 dBm @ 11 Mbps*
14 dBm @ 11 Mbps**
Mode Infrastructure & Ad-hoc*
Infrastructure & Limit-AP**
Encryption WEP, WPA and WPA2
Antenna 5 dBi (Omni-Directional)
Analog Input
Channels 8-ch Differential / 16-ch Single-ended (Note), (Jumper Selectable)
Type Voltage
Range Voltage : ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V
Current : 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA (Jumper Selectable)
Resolution 16-bit
Accuracy ±0.1% of FSR
Sampling Rate 10 Hz (Total)
Input Impedance Differential: 2 MΩ
Single-ended: 1 MΩ
Common Mode Rejection 86 dB Min.
Normal Mode Rejection 100 dB
Overvoltage Protection Differential: 240 Vrms (2 MΩ)
Single-ended: 150 Vrms (1 MΩ)
Individual Channel Configuration Yes
Zero Drift ±20 μV/°C
Span Drift ±25 ppm/°C
Input Range +10 VDC ~ +30 VDC
Consumption 2.2 W
Dimensions (mm) 33 x 127 x 107 (W x L x H) (Without antenna)
Installation DIN-Rail Mounting
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing


Data Sheet


Thông tin mua hàng

WF-2017     CR  Wi-Fi I/O Module with 8-ch/16-ch AI (Asia Only) (RoHS)
Includes ANT-124-05 Antenna and CA-0910 Cable
