GW-7663 CR: Bộ chuyển đổi Gateway PROFINET sang Modbus TCP/IP

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

GW-7663 CR PROFINET to Modbus TCP Gateway (RoHS)

Gọi +84 904251826 để được trợ giúp

GW-7663 CR: Bộ chuyển đổi Gateway PROFINET sang Modbus TCP/IP

Features

• Protocol: PROFINET IO Device
• PROFINET Conformance Class B and RT Class 1
• Cyclic Time: 1ms (min)
• Generic GSDML File Provided (Version 2.25)
• Max length of input/output data is 512/512 Bytes
• Support Modbus Master and Slave mode
• Provide LED indicators
• 4 kV Contact ESD protection for any terminal
• Wide range of power input (+10 to +30 VDC) and operating temperature (-25 to 75°C)

Introduction

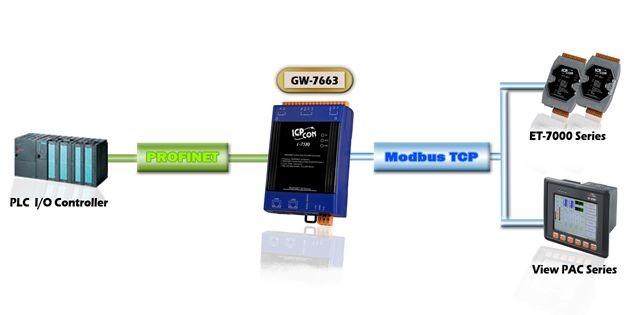

The GW-7663 specially designed for PROFINET IO device. It allows PROFINET controller to access Modbus TCP devices. These Modbus devices maybe a PLC, a sensor, ICPDAS I-8KE4-MCTP, ET-7000 series modules and so forth. We also provide a utility software for users to configure GW-7663. By using this module, users can put their Modbus devices into PROFINET network easily.



Specifications

CPU Module
CPU 32-bit CPU Core
EEPROM 8 KB
Flash 4 MB
SRAM 32 MB
Watchdog Timer CPU built-in



LED Indicators
Status AP LED, BOOT LED, ERR LED



Ethernet
Service ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging



PROFINET
Conformance Classes Class B
Services RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time 1 ms (min)
Protocol PROFINET IO Device



Power
Consumption 3.4 W



Mechanical
Dimensions (mm) 42 x 76 x 110 (W x L x H)
Installation DIN-Rail



Environmental
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

GW-7663     CR  PROFINET to Modbus TCP Gateway (RoHS)
